Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

Product Categories
Qingzhou Suba Machinery Co., Ltd.
Contact Now

Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

Place of Origin : Shandong China

Packaging Details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Supply Ability : 4 Unit/Units per Month

Price : $198,000.00 - $598,000.00/sets

Brand Name : Suba Machinery

Model Number : SL600

Certification : CE

MOQ : 1

Delivery Time : 30-120 work days

Cooling way : Water cooling

Structure : Horizontal

Moulds number : 36/38 pairs

Moulds material : Aluminium

Screw : Single Screw

Screw L/D ratio : 36:1

Die head : Short flow channel

Cooling mandrel : Aluminium

Pipe Material : PE/PP/HDPE/LDPE

Application : Drain,sewage etc

Voltage : 380V or customized

Production Power : 190-22kW

Dimension(L*W*H) : 27m*5.5m*4m

Warranty : 1 Year

Control system : PLC

Key Words : Long service life

Diameter Range : ID100mm to OD630mm

Contact Now

Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain

Pipe Making Machine

SUBA LINES FEATURES

1. Excellent performance, stable operation.
2. Provide your customer with high quality and beautiful pipes with optimal profile design.
3. High production speed.
4. Save your labor and power consumption.
5. Stable structure - Horizontal structure.
6. Easier operation system and patented automatic down-stream proClosed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machineducts, such as: the cutter machine.
Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

TECHNICAL DATE

Model

Pipe range
(DN/mm)

Installed power
(kW)

Production power
(kW)

Moulds number
(pairs)

Chain Length
(mm)

Max. output
(kg/h)

Dimision(L*W*H)
(m)

SL600ID100-OD630465190-22036/386333/6685110027*5.5*4

EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, tacker and the toolings.


Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

EXTRUDERS

  • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.



Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

DIE HEAD

  • Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%.
  • Dynamic adjustment of die head.
  • Less adjustment time- without usage of fastening scerws.
  • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
  • Fast changeover time.



Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

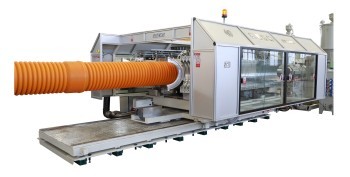

CORRUGATOR

  • Closed loop pressure water cooling system-high forming efficiency.
  • Advanced and high-strength structural design ensures stable production.
  • Powerful and high-automatic vacuum
  • Fast moulds' changeover process.
  • Equipped with water temperature control system.
  • Touch screen technology with different languages.
  • PCC control system.


Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

MOULD

  • Made of high-quality aluminium alloy.
  • Water-cooled moulds guarantee high cooling efficiency and high output.
  • Water temperature control system ensures excellent pipe quality.
  • Moulds are compatible with different corrugators.
  • Fast changeover time.


Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

CUTTER

  • Chipless cutter enable precise, noiseless and dust-free cutting
  • Innovative trigger mechanism ensures precise cutting.
  • Two modes: automatic and manual operation.
  • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine
Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
various countries.Welcome to follow us and visit us!!

CASES

Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
Look forward to work with you!

PATENTS AND CERTIFICATIONS

Closed Loop Water Cooling Corrugated Pipe Machine Double Wall Drain Pipe Making Machine
Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
high speed and eaiser operation system.
Please don't hesitate to contact us!!!
